Orchard Hills North – Stage 1

Client

Legacy Property

Value

(Confidential)

Period

2025

Location

Orchard Hills, NSW

Expertise

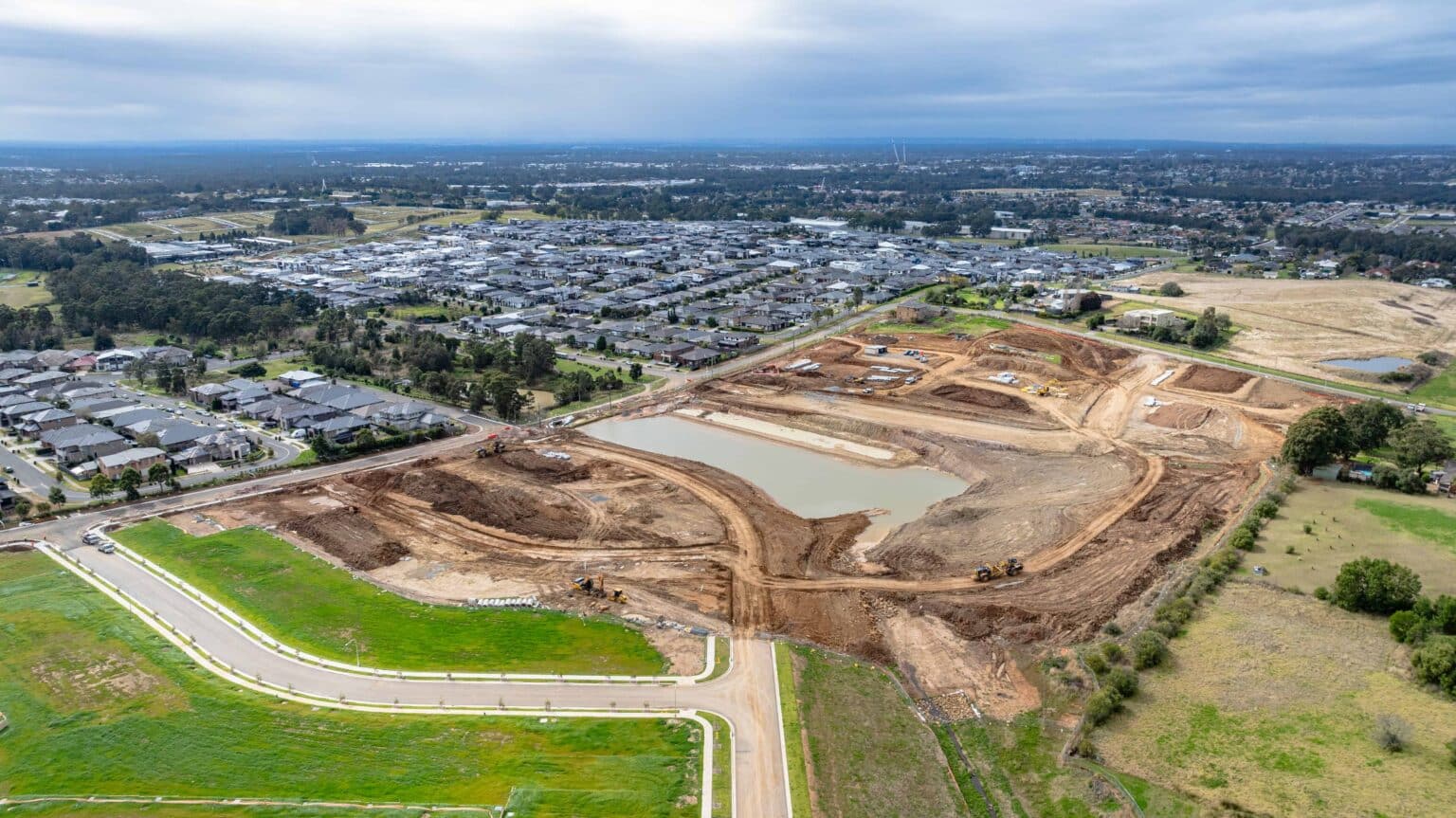

Bulk Earthworks, Residential Subdivisions, Road Construction

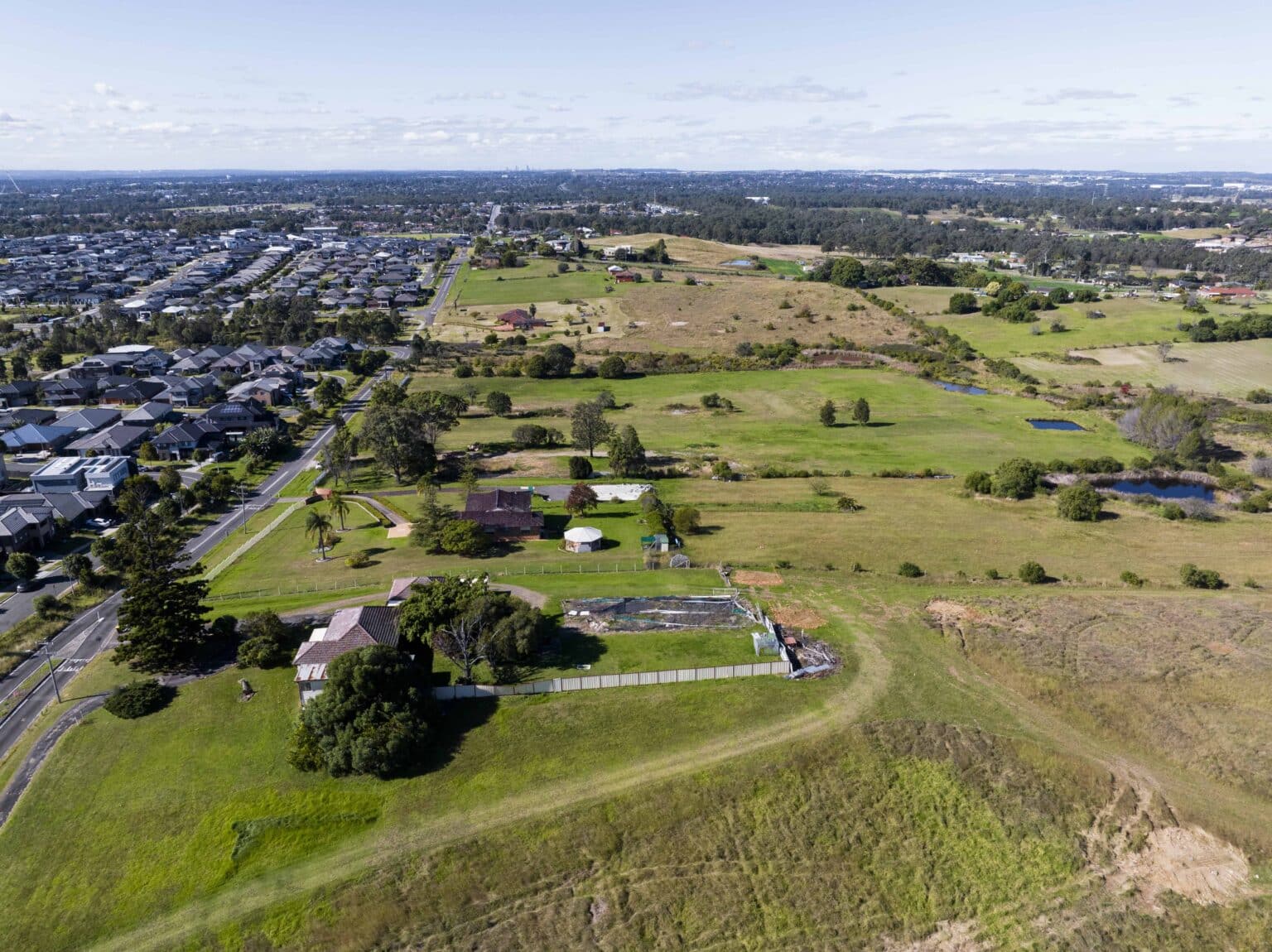

Orchard Hills North is the first land release within the prestigious suburb of Orchard Hills, just minutes from the heart of Penrith. This stunning new community is set among rolling hills with panoramic views to the Blue Mountains.

Located within a well-established area surrounded by everything you need for a wonderful life – a new neighbourhood retail centre, primary school and 19 hectares of playing fields, parks, playgrounds, open spaces and a central lake are poised to create an extraordinary community.

For more information on this exciting new community visit https://orchardhillsnorth.com.au/

Special Features

Residential Subdivision consisting of 92 Lots
Sub-Arterial Road Upgrade working in and around the existing infrastructure
Management of CAA and AHIP zones during construction period
Three Sydney Water trunk mains located under the road that was upgraded including a DN300; DN500; and DN900. Working near these three watermains required additional controls such as vibration monitoring, Sydney Water involvement, additional ITP’s and other management
Existing telecommunications lines were rerouted as part of the scope
Overhead powerlines were converted to underground reticulatio

84,522 m³ of import project requiring multiple source sites
1,922 lin.m of stormwater drainage
8,478 m² of deep lift pavement
7,640 m² of flexible full pavement
3,694 lin.m of kerbs including medians and splitter islands
3,533 m² of footpath concrete pavement
800 m² Sleeper post concrete panel retaining walls
Major rock excavation in other areas of the project
Deep lift pavement along road upgrade to avoid clashes with existing services
Project underwent several RFI and design resolutions to overcome issues onsite with clashes and adjustment to work in an around the existing infrastructure, for which JKW played a large part in identifying and providing resolution
